AN INTRODUCTION TO CONVEYOR TYPES .SELECTION AND USES

AN INTRODUCTION TO CONVEYOR TYPES  .SELECTION AND USES

The  conveyor is quite broad, but generally applies to mechanical devices that transport solids. These can be either bulk solids or powders. Furthermore, conveyors may be either powered or unpowered.  some of major conveyor types, including :
(1) conveyor belts,
(2) overhead conveyors,
(3) roller conveyors,
(4) chutes conveyors,
(5) screw conveyors.

1- conveyor belts
Conveyor belts can be used to transport solids as well as powders, but are not used to transport liquids or gases in any normal capacity. You can find conveyors belts implemented heavily in the following applications:
• Mining
• Food industry
• Pharmaceuticals
• Postage processing
• Manufacturing

FIG 1

The basic components of a conveyor belt include a drive mechanism, which powers the motion of the belt, and the belt itself, which transfers this motion to the conveyed material and provides support. There are a number of different options in belt structure and material and there are also many ways to power the belt. Any conveyor belt system is composed of:
• The belt
• The drive mechanism
• The guidThe belt runs in a continuous loop along the guidance
mechanism, at some point passing through the drive mechanism, which provides power, and the entire system is Bsupported by an underlying structure to transfer the loads to the ground. Figure 2  shows the basic layout of a conveyor belt system.ance mechanisms

FIG 2

The solid polymer/fabric belt structure consists of three major components: the carcass, the skims, and the cover. figure 3

FIG 3

The belt tension is one of the most significant quantities that influences aspects of the belt’s behavior and performance. The working tension of the belt and selected speed determines the necessary power the motor must provide Tension is usually reported in units of PIW, pounds per inch width of belt. Here is a quick formula that can be used

PIW = (HP(1 + K)(33,000))/SW

where:
PIW is the unit tension,
HP the motor horsepower,
K a numerical drive factor,
S the belt speed,
W the width of the belt.
Drive Mechanism The drive mechanism of the conveyor belt consists of the motor, speed reducer, and drive pulley.
Selection Specification
The following design parameters have a notable impact on belting type, drive type, and general sizing:
Load details
• Weight
• Dimensions
• Loading method
• Chemical reactivity
• Temperature
Goal transport speed
Path of conveyor
• Length
• Inclines
• Turns
Function of belt
• Accumulation
• Pure transport
• Concurrent action (painting, cooking, etc.)
Selecting the Correct Belt
• The type of belt used (plied or wire mesh) is strongly dependent on the function intended.
• The weight of the belt affects the requirements on the drive selection.
• The tensile strength required is dependent on the load characteristics.
• For plied belts, interply strength places requirements on the diameter of pulleys.
• The surface material determines how the belt interacts with the load.
2- Overhead Conveyors
the overhead conveyor offers an ideal transport method. All overhead conveyor systems are composed of a track, a coupling device to allow motion along this track, some form of carrier for the load, and in some cases a means to provide power to the system. Each of these components comes in a number of variations. The automotive, garment, and food industries, among others, all use overhead conveyors.

FIG 4

The I-beam track is hung or mounted and provides the support and pathway that the trolleys traverse. see  figure 5 .The enclosed track variant uses hollowed metal bars inside which a wheeled chain passes. A split in the bottom of the bar allows suspension of the load from this powering
chain.
The power and free configuration consist of two tracks, one powered and one unpowered or “free.” The primary advantage of such a system is the ability to separate trolleys from the drive chain. This makes accumulation and intermittent transfer possible, something of which the continuous chain variants described above are not capable. Power and free conveyors may make use of both of the track types discussed previously. Usually, the drive chain passes through an enclosed track, while the free track onto which the trolleys are attached may be either enclosed or I-beam.

FIG 5

The three main drive mechanisms implemented in conjunction with overhead conveyors are the sprocket, friction, and caterpillar drives. Sprocket and friction drives have similar configurations, but interact differently to transfer power, while both the sprocket and caterpillar drives link with the drive train via protrusions to transfer power.
The sprocket drive consists of a motor–reducer combination that powers a toothed sprocket or gear
The friction drive has a configuration similar to that of the sprocket drive. the caterpillar drive uses a separate continuous-drive chain using a sprocket drive and then uses a parallel transfer through the drive dogs to power the main drive chain. Some of the benefits of this configuration over the sprocket drive include easier relocation, compatibility with many different conveyors for reapplication, and more flexibility in location along the drive chain.

FIG 6

Selection Specification The basic steps of the selection process for overhead conveyors are outlined
below.
1. Define the requirements
     a. Load dimensions
     b. Transport speed
2. Select the basic conveyor type
3. Specify the track path, considering
     a. Load dimensions
     b. Transport speed
     c. Space available
4. Select the chain
     a. Type
     b. Necessary chain pull
     c. Appropriate pitch
     d. Linking method
5. Select the drive mechanism
    a. Type
    b. Torque and horsepower requirements
    c. Location in system
3- Roller Conveyors
roller conveyors consist of an arrangement of rollers, cylindrical steel components, upon which the load moves. Roller conveyors find use primarily in bulk applications Roller conveyors are used over belts in scenarios where more diverse loading, unloading, and accumulation options are required.

FIG 7

The various types of roller conveyors are classified by how they are powered, if at all. These types

include:

• Free roller : human powered

• Gravity roller : not driven; uses gravity and an incline to move packages down from a height

• Belt-driven roller : driven by a belt or belts at the end of, or underneath, the rollers

• Chain-driven roller : driven by a chain or chains attached at the ends of the rollers

• Lineshaft roller : driven by a rotating shaft to which individuals rollers are belted

The rollers contact the load, supporting and transporting it forward. The most basic roller is simply a long steel cylinder mounted on a shaft supported by bearings which allow it to rotate.but not move in a translational manner

FIG 8

Powered roller conveyors use drive systems that provide torque to all or intermittent rollers. The four most used are:

1. Belt-driven

2. Chain-driven

3. Line shaft-driven

4. Individually driven

Selection Specification The basic steps of the selection process for roller conveyors are outlined below:

1. Identify application

        a. Load characteristics

        b. Conveyance need: Powered? Unpowered? Accumulation?

2. Select type of roller conveyor; consider:

        a. Load aspects and needs

        b. Cost

        c. Adaptability

3. Select and size rollers

        a. Type

        b. Roller selection

        c. Bearings

4. Specify path

5. Select drive (if necessary)

       a. Based on type of load and conveyor

       b. Torque and horsepower requirements

The selection of roller conveyor type depends mostly on the weight of the load. For powered roller conveyors, line shaft conveyors are the most cost-effective for lighter loads, chain driven can be used for heavier loads, and individually powered are the most adaptable and suitable for very heavy loads. Gravity or unpowered conveyors suffice for simple directing or facilitation of intermediate-weight loads.

4- Chute Conveyors

The chute conveyor serves the role of connecting components in the materials flow chain. They are simple in the fact that there are no moving parts in the chutes themselves, but if poorly designed or implemented, chutes can be the source of some of the biggest complications. Their primary application is containing and guiding material. They are used in handling most substances besides gases, and rely on gravity to motivate motion.

FIG 9

They vary in complexity with application. For open chutes, the main geometric parameters of interest are the width, height, length, and angle of declination. If there is a turn in the chute, the radius of this turn is important to consider to prevent package jamming and flow backup.

In closed chutes, the cross section, which encompasses the previously mentioned dimensions, is one of the most important factors. The curvature of the chute, which can be related to the instantaneous angle of declination, also affects flow rates and clogging. Open chutes are generally found

in simpler applications with larger solids (not powders or particulate solids). They guide material imprecisely, as the goal is only to convey the individual loads to the next conveyor. Major concerns in regard to open chutes include:

• The coefficient of friction between the chute material and load base

• Angle of declination necessary to overcome this sliding friction without tumbling loads

• Width necessary to prevent jamming, especially in turn sections

• Exit speed of loads from chute Closed chutes find more frequent

use in bulk solids handling such as mining and grain processing. The responsibilities attributed to closed chutes are:

• To guide material onto a conveyor belt, at the speed of the belt, in the direction in which the belt is traveling

• To eliminate spillage

• To enclose material dribbles

• To enclose material from operating personnel

• To eliminate dust liberation

the mass flow rate, usually labeled Q. Using continuum mechanics provides a flow rate of

Q = 𝜌VA

where:

ρ the bulk density (kg/m³),

V the velocity (m/s),

A the cross-sectional area (m²).

 Q in kg/s.

5- Screw Conveyors

The screw conveyor of today is mechanized and used in many industries. Some examples include the grain, mining, and sewage industries. Screw conveyors can be implemented horizontally, on an incline, or vertically. The simplicity of the design leads to predictable behavior and reliable service

in most applications

FIG 10

The basic screw conveyor consists of several components:

• The screw itself

• The shaft

• The shaft supports

• The trough and covers

• The drive mechanism

The characteristic component of the screw conveyor, the screw itself, is responsible for converting

rotary motion into translational motion in the material conveyed.

Some important characterizing quantities include the diameter and the pitch. The pitch of the screw is the distance between adjacent planes of the flight and is a characterization of the steepness of the inclined plane. Pitch values are usually given in terms of diameters. Some examples are illustrated in Fig.11

FIG 11

The possible types of screw design are nearly endless. Some more “exotic” designs include variable pitch, ribbon, or cut and folded screws (Fig. 12). Each design possesses its own advantages and has a specific effect on thematerial being transferred.Some exotic screw designs: (a) variable; (b) ribbon; (c) cut and folded

FIG 12

Selection Specification The selection of screw

conveyor system components is outlined below.

1. Define the material to be conveyed.

      a. Maximum particle size

      b. Bulk density

      c. Chemical reactivity

      d. Temperature

2. Define the capacity and distance conveyed.

3. Using the requirements outlined above, size and select the conveyor.

      a. Diameter

      b. Screw pitch

     c. Screw materials (considering temperature, abrasiveness, and corrosivity)

4. Calculate the horsepower required.

5. Select the motor and drive arrangement.

6- Skatewheel Conveyors

Similar to a roller conveyor, skatewheel conveyors consist of many small wheels mounted on a horizontal grid. The transfer concept is the same as for roller conveyors, but there is much less contact area with loads. Skatewheel conveyors are predominantly unpowered and used to transport boxes or other flat-bottomed loads. They can be gravity conveyors when mounted on inclines, but more often they are usedmerely to facilitate human-powered movement of packages.

FIG 13

7-Bucket Conveyors

As the name implies, this conveyor relies on buckets to move material in a vertical or inclined path. The buckets are mounted as illustrated in Fig. 14. The materials are loaded in at the bottom, drawn up inside the upright bucket

FIG 14

8- Vibrating or Oscillating Conveyors

vibrating conveyors are used for smaller particulateloads, such as pills or diamonds, while oscillating conveyors have a larger amplitude, lower-frequency motion, and handle slightly larger objects, such as hot metal castings.

This form of conveyor is generally used only over a short distance and is helpful in separating materials into a single layer for further conveyance on a belt.

FIG 15

9- Pneumatic Conveyors

Pneumatic conveyors rely on air or gas pressure to move materials through a network of tubes or pipes. A simple form of this conveyor with which you may be familiar is implemented at many drive through banks. The tube system that transports canisters between your car and indoor tellers is a pneumatic conveyor. For bulk solids and industry uses, the idea is about the same, only on a larger scale. Some industry applications include grain handling, fine powders, pharmaceuticals, and food processing.

FIG 16

10- Cart-on-Track Conveyors

This conveyor is designed to transport discrete loads. A mine cart can be viewed as one manifestation of the cart-on-track method.

The difference between different forms of cart-on-track conveyors is the manner in which they are powered. Many are human powered, some have motors mounted on each cart, and others rely on a line shaft concept similar to that used in roller conveyors. This is illustrated in Fig. 17.

The central rotating shaft is coupled to each cart, motivating it along the supporting tracks. Usually, flat cart conveyors are used for large package handling, and bucket carts can be used for bulk solid handling.

FIG 17

11- Vertical (Elevator) Conveyors

Vertical conveyors are implemented when very heavy loads need to be moved through a height. Usually, they are run intermittently, only requiring use sporadically. If more regular vertical transfer is required, other conveyance methods such as belts or overhead conveyors are recommended. Vertical conveyors are basically freight elevators, but are not constructed with considerations toward carrying people. Unless specially designed, you should not use this conveyance device for moving people.

FIG 18

PDBalance software about dynamic balancing

PDBalance software for performing calculations about dynamic balancing of

rotating parts.

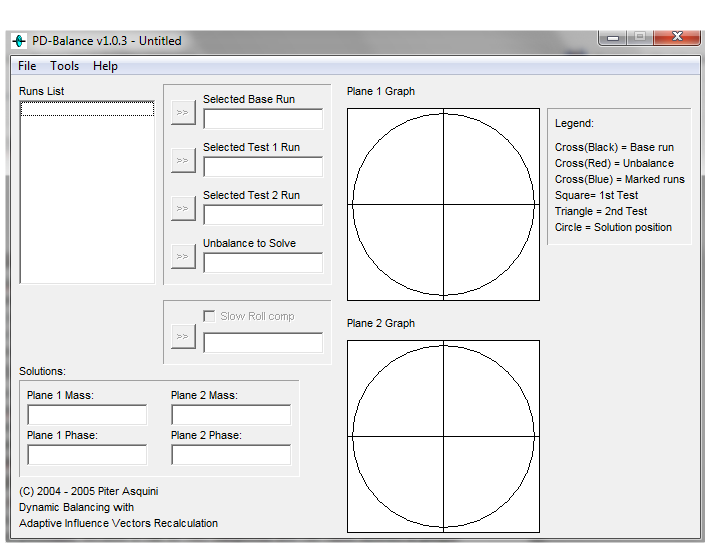

Introduction
What is PDBalance? PDBalance is a software for performing calculations about dynamic balancing of rotating parts. Some useful tools has been added for solving several typical problems which can be
found during a balancing process.
PDBalance is free. To use it, you must only accept the disclaimer that the program shows during the startup. It runs on Microsoft Windows 98, ME, 2000, NT e XP.
Registration
If you want to use PDBalance you are asked to register (free of charge) filling the form contained in the file register.txt and sending it to the author at: p.asquini@tiscali.it
After registration you will be informed about every new software release. Feel free to report any suggestion, ask any question about the program or simply let the author know about the ways you are using PDBalance and the results you have obtained.
Important
Before using this software it is necessary to know what a dynamic balancing is and to have understood its mechanism. Adding and removing masses on rotating bodies should be performed only by skilled personnel, because it can be very dangerous and can cause injuries to people.
Disclaimer
This software is given to you “as it is” without any warranty. Although any effort was made to ensure the accuracy of the program result, the author does not take any responsibility for the use and application of the program. If you do not agree with this, you should not use it.

DOWNLOAD

Nondestructive Testing Standards~Present and Future ASME STP 1151

Nondestructive Testing

Standards~Present and Future

ASME STP 1151

Nondestructive testing (NDT), the examination of materials in ways that do not impair the
intended uses of the materials, represents technology central to the concept of improved quality.
Although the quality of materials, components, and products has always been important,
it is clear that recent shifts in world trade and the growing awareness of the life-cycle costs of
products has resulted in an increased appreciation of quality concepts and NDT. In order to
achieve a better understanding of the role of NDT standards and their impact on world trade,
ASTM Committee E-7 on Nondestructive Testing organized a three-day Symposium on Nondestructive
Testing Standards II: New Opportunities for Increased World Trade Through
Accepted Standards for NDT and Quality. The Symposium was held 9-11 April 1991 at the
National Institute of Standards and Technology (NIST) in Gaithersburg, Maryland, under the
joint sponsorship of Committee E-7 and NiST, and in cooperation with the American Society
for Nondestructive Testing and the American Welding Society. James Borucki, chairman of
Committee E-7, served as General Chairperson of the Symposium.
This special technical publication (STP) presents peer-reviewed versions of most of the
papers presented at the Symposium. The title of the book was changed from the Symposium
title to Nondestructive Testing Standards--Present and Future during the editing process
when it became evident that the authors of the papers, almost without exception, had provided
us with knowledgeable projections of what we may expect to see in the way of new NDT standards
in the years ahead. We feel that this aspect of the book may well represent its most unique
value, coming at a time when American industry is focused on quality considerations and
European Community standards are becoming an additional factor in international trade.
The book has been divided into four sections: (1) NDT Standards: The ASTM Program; (2)
NDT Standards: NIST, DoD, ASME, SAE,/SO, EC; (3) NDT Personnel Qualification: Here
and Abroad; (4) NDT Standards: Advanced Applications.

DOWNLOAD

Aerodynamics - Handbook Of Aerodynamic

Aerodynamics - Handbook Of Aerodynamic

PILOT’S HANDBOOK of Aeronautical Knowledge

The Pilot’s Handbook of Aeronautical Knowledge provides basic knowledge that is essential for pilots. This handbook introduces pilots to the broad spectrum of knowledge that will be needed as they progress in their pilot training. Except for the Code of Federal Regulations pertinent to civil aviation, most of the knowledge areas applicable to pilot certification are presented. This handbook is useful to beginning pilots, as well as those pursuing more advanced pilot certificates. Occasionally, the word “must” or similar language is used where the desired action is deemed critical. The use of
such language is not intended to add to, interpret, or relieve a duty imposed by Title 14 of the Code of Federal Regulations (14 CFR). It is essential for persons using this handbook to also become familiar with and apply the pertinent parts of 14 CFR and the Aeronautical Information Manual (AIM). The AIM is available online at http://www.faa.gov/atpubs.
The current Flight Standards Service airman training and testing material and subject matter knowledge codes for all airman certificates and ratings can be obtained from the Flight Standards Service Web site at http://av-info.faa.gov.
This handbook supersedes Advisory Circular (AC) 61-23C, Pilot’s Handbook of Aeronautical Knowledge, dated 1997.

DOWNLOAD
